CONSTRUCTIVE ADVANTAGES:
- Manpower: Less than 3 man hours per square meter.
- Lost Plastic Formwork: Easy mounting. Plane surface that allows easy movement of workers during the mounting.
- Nozzles.-

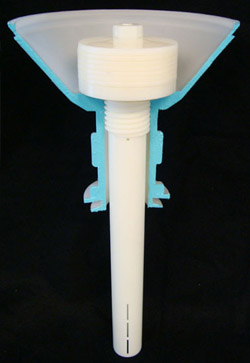

- They have a protection CONE that allows its pre-mounting and adjust in bench with a controlled torque, applying quality control rules easy to comply.
- Quick mounting by means of a 90 degrees turn.
- With protection cap during concrete placing.
- Protection during filter media addition and / or replacement.
- The installation doesn’t need qualified manpower.
- Eliminates troubles during in-situ mounting.

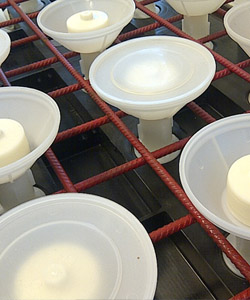

- The CONES bring a firm support surface for the displacement during concrete placing.
- Concrete Slab: It’s based on columns fixed to the floor. It doesn’t need fixing on lateral walls. The builder can construct simple and smooth walls.
- Self compacting concrete. It doesn’t need to adjust level after placing.
DURING FILTRATION AND BACKWASHING
- Salas made studies with filters built with traditional nozzles (without CONE). The results show that filtering media in the area near the nozzles and especially between them doesn’t seem to be working. Media in that zone is completely clean.
- We assume that these filtering media areas don’t work and are not backwashed. They are dead zone.
IMPROVEMENTS.
- During filtration time, our system with nozzles with CONES eliminates dead zones producing constant filtering down-flow and backwashing up-flow.
- Backwashing with water and air, using nozzles with CONES is more efficient due to the better dispersion that produces the CONES.
|
